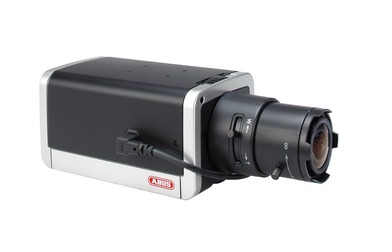

WD DNR Day/Night 650 TVL Camera, 12 VDC / 24 VAC (Art. no. TVCC50011)

Special product features:

  • 650 TVL resolution
  • 1/3" Sony Exview HAD II CCD520 TVL resolution
  • 1/3" Sony Exview HAD II CCD
  • EFFIO-E chip set with WDR function for clear image display even under strong contrast conditions
  • DNR function for images free of noise
  • Day/night camera with electromechanical swivelling IR cut filter (ICR)
  • Second video output for simple camera configuration

Technical data:

Art. no.: TVCC50011
Dimensions: 68.91 x 58.5 x 121.3 mm mm
Connections: 2 x BNC, 1V s-s; 75 Ohm; DC/AC
Back focus adjustment: Yes
Image sensor: 1/3'' Sony Exview HAD II CCD
Pixels (effective): 976 (H) x 582 (V) pixel
Pixels (total): 1020 (H) x 596 (V) pixel
Width: 69 mm
DSP: Sony Effio-E
Dynamic range (WDR): 46 dB
Electronic shutter: AI / AES / Manual
Backlight compensation: Soft WDR, BLC, HLC (High Light Compensation)
Height: 59 mm
Camera type: Standard camera
Length: 122 mm
Humidity: 0 – 85%
Max. operating temperature: 50 °C
Min. operating temperature: -10 °C
Minimum illumination (color): 0,005
Minimum illumination (IR): 0
Net weight: 0.4 kg
Lens mount: CS/C
Lens control: DC/Video
Private zones: 4 Zones, free to configure
Noise reduction: 2D DNR
IP protection class: 34
Signal-to-noise ratio: 52
AC voltage supply: 24 V
DC voltage supply: 12 V
Power consumption: 250 mA
Day/night switching: IR swiveling filter (ICR), color / B/W
TVL: 650 TVL
Amplifier control: AGC, 0~28 dB
White balance: ATW / Manual, 1800~10500K
Certifications: CE, RoHS, Reach

Scope of delivery:

  • 1x Connecting cable for the 12 V DC power supply
  • 1x C-mount lens adapter ring
  • 1x Base for camera mount incl. screws
  • 1x User guide

Certificates:

Box

Box

The analog box cameras from ABUS provide versatile functions for a number of applications and meet a wide range of requirements with the suitable lens. The second video output for connecting a test monitor as well as the on-screen display make on-site installation easier. Analog box cameras can also be easily mounted outdoors in the weatherproof housing. ...
