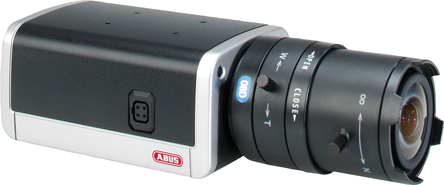

520 TVL Standard Camera (Art. no. TVCC20520)

Special product features:

  • 520 TVL resolution
  • 1/3" Sony Super HAD CCD
  • Image optimisation with DSP technology
  • Simple parameter setting with DIP switches and potentiometer
  • Standard camera with compact housing design
  • Integrated 230 V AC power supply unit

The Eyseo standard cameras come with various features at a very competitive price. They can be used with a plethora of lenses. This mid-range model is equipped with a 1/3" Sony Super HAD CCD. With 520 TV lines it delivers very detailed color images in high resolution with minimal image noise. Furthermore, the image sensor's high light sensitivity ensures excellent picture quality. The Eyseo standard series is compatible with C-Mount and CS-Mount lenses: with or without Auto-Iris function. A connector for a DC Auto-Iris plug is available. All models of the series feature AWB (Automatic White Balance), ELC (Electric Light Compensation), BLC (Back Light Compensation), and AGC (Automatic Gain Control) for optimizing image quality with backlight and other adverse lighting situations. Depending on the aperture, light-sensitivity is around 0.01 lux. Thus, the camera still delivers good images when the human eye cannot see anything anymore. This quality camera for video surveillance at the mid-range level operates on 230 V AC (for 12 V DC see the structurally identical TVCC20020). The camera also convinces with its low power consumption. Handy for installation: simple setup and configuration via easily accessible DIP switches.

Technical data:

Art. no.: TVCC20520
Dimensions: (WxHxD) 55.5x40.5x99.0 mm
Connections: BNC, DC (5.5x2.1mm, 2-Pin)
Image sensor: 1/3" Sony Super HAD CCD
Pixels (effective): 752(H) x 582(V) pixel
Pixels (total): 795(H) x 596(V) pixel
Aperture at minimum illumination (color): 1.0, 30
Width: 56 mm
DSP: Nextchip
Electronic shutter: AES/AI
Backlight compensation: BLC
Height: 41 mm
Camera outputs: 1 x V s-s, 75 Ohm
Camera type: Standard camera
Length: 99 mm
Max. operating temperature: 50 °C
Max. humidity: 85 %
Min. operating temperature: -10 °C
Minimum illumination (color): 0,01
Net weight: 0.29 kg
Lens mount: CS/C
Lens control: DC
IP protection class: 34
Signal-to-noise ratio: 48
AC voltage supply: 110-230 V
Control: DC
Power consumption: 125 mA
TVL: 520 TVL
Amplifier control: AGC, Off
Video output: FBAS (1 Vss, 75 Ohm)
Video system: PAL
White balance: AWB
Certifications: CE, UVV

Scope of delivery:

  • 1x Spacer for outdoor housing
  • 1x C-mount lens adapter ring
  • 1x Base for camera mount incl. screws
  • 1x User guide
