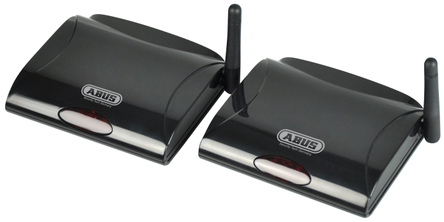

Digital video transmission set (2.4 GHz) front view
|||||

Digital video transmission set (2.4 GHz) (Art. no. TVAC15100)

Special product features:

  • Wireless transmission of video and audio signals
  • Transmission frame rate of 30 fps @ D1 resolution
  • 2.4 GHz encrypted digital wireless transmission
  • Integrated IR transmitter

Using this 2.4 GHz digital transmission set, you can transmit video and audio signals wirelessly over medium to long distances without any problems. The video transmission set consists of a wireless transmitter and a wireless receiver. Wireless signal transmission is an advantage everywhere where cables cannot be laid: the transmitter module transmits the signal recorded by the camera wirelessly to the receiver module. Faults and interference can be fully avoided due to the conversion into digital signals. The set is perfect for wirelessly transmitting the signal from ABUS analog cameras.

Technical data:

Art. no.: TVAC15100
Dimensions: 114 x 85 x 23 mm
Resolution: 720 x 480
Output: AV-OUT
Frame rate: 30 fps
Width: 114 mm
Input: AV-IN, DC-Eingang
Frequency: Verschlüsselt 2,4 GHz
Height: 85 mm
Camera inputs: 1
Length: 23 mm
Max. operating temperature: 50 °C
Min. operating temperature: -10 °C
Net weight: 0.09 kg
DC voltage supply: 5 V
Power consumption: max. 400 mA
Certifications: CE

Scope of delivery:

  • 1x Receiver
  • 1x Transmitter
  • 2x Power supplies incl. EU, AUS, and UK adapters
  • 2x AV cable
  • 2x BNC-RCA adapter
  • 1x User guide
Funk-Videosysteme

Wireless video systems

Video signals are wirelessly transmitted wherever it would be undesirable or impossible to lay cables. This is very often the case particularly when securing large building complexes. The transmission is carried out on an encrypted basis, effectively preventing interception. ...
