Video noise filter front view Video noise filter Example of application Video noise filter Example of application
|||||

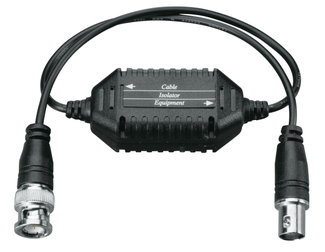

Video Noise Filter (Art. no. TV8727)

Special product features:

  • Prevents image noise by compensating potential differences
  • Used between the camera and monitor

Different ground potentials can cause ground loops, which in turn can result in picture noise. A video noise filter compensates these potential differences and prevents interferences.The video noise filter is plugged in between the video camera and the monitor or the signal-carrying cable. Low- and high-frequency noise is compensated by the filter.

Technical data:

Art. no.: TV8727
Connections: 2x 15cm video line and BNC connector
Width: 84 mm
Input loss: 0.5 dB
Frequency function: 0-3 db bei 10
Height: 28 mm
Length: 21 mm
Resistance: 75 / 1Vss
