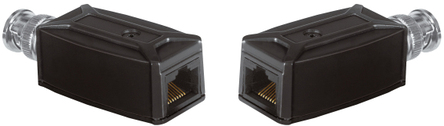

600 m 2-wire Transmission Set right view 600 m 2-wire Transmission Set front view
|||||

600 m 2-Wire Transmission Set (Art. no. TV8740)

Special product features:

  • 1 × BNC plug (1 Vpp, 75 ohm)
  • 1 × RJ45 socket (100 ohm)
  • Set consists of a transmitter and receiver
  • Max. transmission distance: 600 m
  • Video transmission via twisted pair or network cables

This set allows transmitting the video signal via a 2-core cable. The 2-wire transmission set consists of a transmitter module and a receiver module. Connect the transmitter module to the video output of your camera and the receiver module to the video input of your monitor. The two modules are connected by a twisted pair cable (CAT5 cable with RJ45 socket) or existing 2-core copper wires (e.g. a telephone cable). The maximum distance between the two modules is 600 meters. The scope of delivery includes two adapters (RJ45 socket on screw terminals) for trouble-free installation of the wiring.

Technical data:

Art. no.: TV8740
Dimensions: (W x H x D) 19 x 23 x 66 mm
Output: RJ-45
Width: 19 mm
Suitable cable: Twisted Pair / CAT5 / AWG24
Height: 23 mm
Length: 66 mm
Max. operating temperature: 50 °C
Min. operating temperature: 0 °C
Transmission distance: 600 m
Video input: 1x BNC
Video input impedance: 75 O
Video input level: 1Vss

Scope of delivery:

  • 1x Transmitter
  • 1x Receiver
  • 1x Screw terminal adapter
