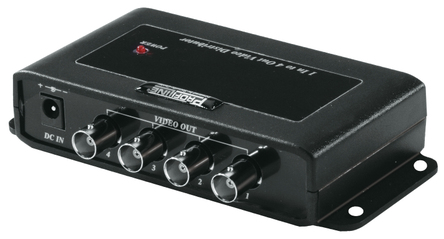

4x signal distributor rear view 4x signal distributor front view
|||||

4x Signal Distributor (Art. no. TV8726)

Special product features:

  • Transmission of a video signal to up to four monitors or recorders
  • 1 video input (BNC/1 Vpp, 75 ohm)
  • 4 video outputs (BNC/1 Vpp, 75 Ω)
  • Suited for PAL and NTSC

Use the 4x signal distributor to transmit the video input signal without loss to four monitors. Connect your camera to the signal distributor's video input and connect the monitors to the video outputs. Four BNC video outputs are provided.

Technical data:

Art. no.: TV8726
Dimensions: (W x H x D) 137 x 27 x 65 mm
Width: 137 mm
Height: 27 mm
Length: 65 mm
Max. operating temperature: 45 °C
Min. operating temperature: -10 °C
DC voltage supply: 12 V
Video output level: 1 Vss
Video input: 1 BNC
Video input impedance: 75 O
Video input level: 0,5Vss − 1Vss

Scope of delivery:

  • 1x Power supply unit
  • 1x User guide
