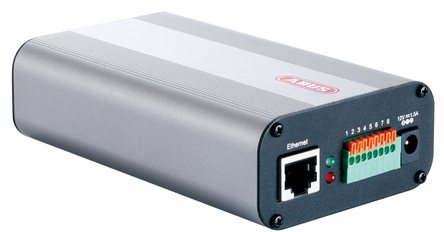

D1 network video server front view right D1 network video server back view
|||||

D1 network video server (Art. no. TVIP40000)

Special product features:

  • For integrating analogue cameras in networks
  • H.264 compression – effective use of storage space and bandwidth
  • Real-time streaming with D1 resolution
  • Power over Ethernet (PoE)
  • Integrated SD card slot
  • Audio and alarm I/O
  • RS-485 interface for controlling speed dome cameras

The D1 dual stream network video server is used to integrate analogue cameras in digital networks, regardless of the model. Thanks to effective H.264 compression, the server streams camera recordings at high performance, in full D1 resolution and in real time. The server is equipped with a PoE function for flexible and simple installation without an extra power supply - only an IP cable is required for power and data transmission. Apart from this, the video server is characterised by a variety of intelligent functions. Many safety functions can be realised using the audio/alarm input and output. An SD card can be installed, resulting in additional data security in the event of system failure.

Technical data:

Art. no.: TVIP40000
Dimensions: (WxHxD) 75x35x150 mm
Alarming: E-Mail / FTP / HTTP notification / relay output / network drive
Number of streams: 4
Audio: Audio output (Speaker Out), audio input, 2-way audio, audio recognition
Resolution modes: 176x144 - 720x576 pixel
Motion detection: 3 zones
Pixels (effective): 720(H) x 576(V) pixel
Pixels (total): 720(H) x 576(V) pixel
Frame rate: H.264 720x480 @ 30FPS, 720x576 @ 25FPS, MPEG-4 720x480 @ 30FPS, 720x576 @ 25FPS, MJPEG 720x480 @ 30FPS, 720x576 @ 25FPS fps
Width: 75 mm
Digital zoom: 4
Backlight compensation: BLC
Height: 35 mm
Length: 150 mm
Power consumption: 5 W
Max. resolution @ frame rate: 640 x 480 @ 25 fps
Max. operating temperature: 55 °C
Min. operating temperature: 0 °C
Net weight: 243 kg
LAN network access: RJ45
Network camera protocols: IPv4, IPv6, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, CoS, QoS, SNMP and 802.1X
PoE: 802.3af
Relay output: 1
AC voltage supply: 24 V
DC voltage supply: 12 V
Storage medium: SDHC 32 GB
Power consumption: 420 mA
Encryption: HTTPS SSLv3
Video compression: H.264, MPEG-4, MJPEG
Pre-alarm/post-alarm memory: 10 s
Certifications: CD, RoHS, C-Tick

Scope of delivery:

  • 1x Power supply
  • 1x Wall mount incl. fixing screws
  • 1x VMS Express software
  • 1x User guide
  • 1x Installation CD

General Downloads:

Additional Information:

Software:

  • Installation Software

    • ABUS VMS Websoftware v7.7.12 Win 32/64-Bit
      ABUS VMS Software

      History
      Version: 7.7.12
      Release Date: 30.09.2014
      Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.7.12, Software ABUS VMS Enterprise Demoversion, Version 7.7.12

      Optimizations:

      1. Faster search results within new version of ABUS IP-Installer
      2. Solved issue for audio playback when using Windows 8
      3. Automatic audio pre-configuration of connected ABUS IP cameras for usage with VMS software
      4. Audio playback enabled for reader software (database export)
      5. Memory utilization for TV3300-TV3310 improved
      6. Solved issue when launching VMS without any connected network interface
      7. Video streaming for AXIS network cameras corrected
      8. Fixed problem on launching reader software (database export)
      9. Solved issue on fast open/close masking settings within configuration menu



      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TV7203, TV7204, TV7206,
      TV7220, TV7221, TV7222, TV7223, TV7230, TV7240
    • ABUS VMS Websoftware V6.11.1963 Win 32/64-Bit
      ABUS VMS Software
      History
      Version: 6.11.1963
      Release Datum: 02.11.2011
      Info:
      32 Bit + 64 Bit Version
      For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
      Changes:
      Supports the network camera TVIP62000
      Several runtime errors solved for network cameras
      Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
    • ABUS VMS Plugin V 510
    • v8.0.22
      Version: V8.0.22
      Release date: 08.12.2014
      Filename:IP-Installer-Setup.exe (ABUS_IP-Installer_v8.0.22.zip)

      Changes:
      1. New design of user interface
      2. Full-text search function for easy filtering the result list
      3. Direct modification of IP settings via IP-Installer:
      TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
      TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
      TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
      TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
      TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
      TVIP86300, TVIP86900,FUAA11000,FUAA50000
      4. Network search in all subnet’s within local network:
      TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
      TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
      TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
      TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
      TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
      TVIP86300, TVIP86900
      5. Language settings of local operating system will be used by the application

      Improvements:
      1. Network search speed and detection of firmware version further optimized

  • Recording Software

    • ABUS VMS Express v7.8.14 Win 32/64-Bit
      Version: 7.8.14
      Release Date: 08.12.2014
      Filename: Software ABUS VMS Express, Version 7.8.14



      Changes:

      1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
      Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.

      2. Error message can be disabled via system settings menu "miscellaneous".


      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TVIP86300, TVIP86900
    • ABUS VMS Express V6.11.1963 Win 32/64-Bit
      ABUS VMS Software
      History
      Version: 6.11.1963
      Release Datum: 02.11.2011
      Info:
      32 Bit + 64 Bit Version
      For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
      Changes:
      Supports the network camera TVIP62000
      Several runtime errors solved for network cameras
      Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
    • ABUS VMS Basic-Professional-Enterprise v7.8.14 Win 32/64-Bit
      Version: 7.8.14
      Release Date: 08.12.2014
      Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.8.14, Software ABUS VMS Enterprise Demoversion, Version 7.8.14

      Changes:

      1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
      Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.
      2. Adding support for installer logo (PNG/JPG, 128x64px) via system settings. The software needs to be restarted after adding
      a new logo.


      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100,
      TVIP86300, TVIP8600
    • ABUS VMS Basic-Professional-Enterprise V6.11.1963 Win 32/64-Bit
      ABUS VMS Software
      History
      Version: 6.11.1963
      Release Datum: 02.11.2011
      Info:
      32 Bit + 64 Bit Version
      For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
      Changes:
      Supports the network camera TVIP62000
      Several runtime errors solved for network cameras
      Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
    • ABUS VMS Enterprise Demo v7.5.2408 Win 32/64-Bit
      ABUS VMS Software

      History
      Version: 7.7.12
      Release Date: 30.09.2014
      Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.7.12, Software ABUS VMS Enterprise Demoversion, Version 7.7.12

      Optimizations:

      1. Faster search results within new version of ABUS IP-Installer
      2. Solved issue for audio playback when using Windows 8
      3. Automatic audio pre-configuration of connected ABUS IP cameras for usage with VMS software
      4. Audio playback enabled for reader software (database export)
      5. Memory utilization for TV3300-TV3310 improved
      6. Solved issue when launching VMS without any connected network interface
      7. Video streaming for AXIS network cameras corrected
      8. Fixed problem on launching reader software (database export)
      9. Solved issue on fast open/close masking settings within configuration menu



      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TV7203, TV7204, TV7206,
      TV7220, TV7221, TV7222, TV7223, TV7230, TV7240

  • Firmware
