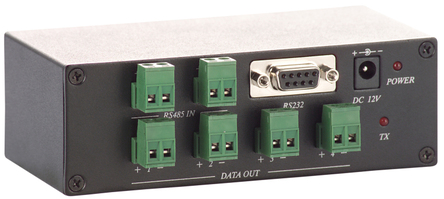

RS-485 matrix right view
|||||

RS-485 Matrix (Art. no. TV8473)

Special product features:

  • Simultaneous connection of two RS485 control devices to one bus line
  • Rugged black metal housing

This device allows you to operate several PTZ control devices (such as a PTZ control panel and DVR) on an RS-485 bus cable. At the same time, the data is actively distributed on up to four RS-485 dual-wire lines. This allows cables to be efficiently laid in installations that have PTZ dome cameras distributed across a large area.

Technical data:

Art. no.: TV8473
Dimensions: (W x H x D) 133 x 76 x 44 mm
Width: 133 mm
Data output: 4x RS-485
Data input: 2x RS-485 1x RS-232
Height: 76 mm
Length: 44 mm
Power consumption: 350 W
Max. operating temperature: 45 °C
Max. humidity: 95 %
Min. operating temperature: 0 °C
Net weight: 0.425 kg
DC voltage supply: 12 V
Power consumption: 350 mA
Transmission distance: 1200 m

Scope of delivery:

  • 1x RS-485 matrix
  • 1x User guide
  • 1x Power supply unit
