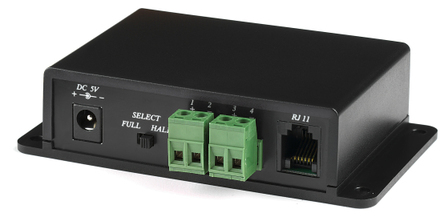

RS-232 to RS-485 / RS-422 converter right view RS-232 to RS-485 / RS-422 converter rear view
|||||

RS-232 to RS-485 / RS-422 converter (Art. no. TV8467)

Special product features:

  • Converts RS-232 data into RS-485 or RS-422 data
  • 4-wire full or 2-wire half-duplex
  • Distance: up to 1200 m

This converter provides you with flexible data transfer (full or semi-duplex).

Technical data:

Art. no.: TV8467
Dimensions: (W x H x D) 107 x 25 x 79 mm
Connectible devices: RS-485 / 422
Connections: 2-core half-duplex, 4-core full-duplex
Width: 107 mm
Data rate: max. 115.2 kBit/s
Height: 25 mm
Length: 79 mm
LED display: TX-485, TV-RS-232, RX-RS-232, DTS, RTS
Max. operating temperature: 55 °C
Max. humidity: 90 %
Min. operating temperature: 0 °C
DC voltage supply: 5 V
Power consumption: 500 mA
Transmission distance: 1200 m

Scope of delivery:

  • 1x Converter
  • 1x Power supply unit
  • 1x User guide
