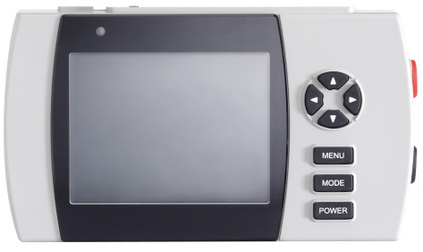

3.5" TFT Test Monitor front view 3.5" TFT Test Monitor front view 3.5" TFT Test Monitor Example of application
|||||

3.5" TFT Test Monitor (Art. no. TVAC10100)

Special product features:

  • Measurement of AC/DC voltage and video signal
  • Continuity measurement
  • Zoom/PTZ camera control (PELCO D/P)
  • Graphical on-screen display (OSD)
  • Battery operation for up to 4 hours

The new ABUS Security-Center test monitor is the ideal tool for all video projects. The monitor is easy to transport and thus delivers the desired performance data wherever needed - video image, voltage, line connectivity. A special highlight is that you can immediately check the images on the monitor while you are adjusting the PTZ camera. This makes adjustments for different positions a lot easier.

Technical data:

Art. no.: TVAC10100
Dimensions: (W x H x D) 156 x 90 x 38 mm
Connection type: BNC, audio, RS-485, cable 1, cable 2
Horizontal/vertical viewing angle: 120 x 100 °
Picture format: 4:3
Screen diagonal: 3.5 "
Width: 156 mm
Display surface: Matte
Color levels: 16.7 MIO
Frequency range: 60 Hz (P) / 50 Hz (N) GHz
Functions: AC / DC voltage measurement, cable continuity test, speed dome test, video level measurement, audio test
Housing material: Plastic
Brightness: 300 cd/m²
Height: 90 mm
Contrast ratio: 350:1
Length: 38 mm
Loudspeaker: 1
Max. operating temperature: 45 °C
Min. operating temperature: 0 °C
Monitor type: Test monitor
Net weight: 0.29 kg
Reaction time: 25 ms
Signal detection: Automatic
DC voltage supply: 9 V
OSD language: multilingual
Power consumption: 400 mA
Video system: PAL / NTSC

Scope of delivery:

  • 1x Bag
  • 1x Protective cover
  • 1x Terminal connectors
  • 1x Rechargeable battery
  • 1x Power supply unit
  • 1x Sensor
  • 1x Video cable
  • 1x Neck strap
  • 1x User guide
  • 1x Wrist strap
