1/3" IR Vario Lens 8.5-40 mm DC Aperture front view 1/3" IR Vario Lens 8.5-40 mm DC Aperture front view
|||||

1/3" IR Vario Lens 8.5-40 mm DC Aperture (Art. no. TV8552)

Special product features:

  • Auto-iris lens
  • Focal length 8.5 – 40.0 mm
  • Aperture: F1.3
  • Horizontal viewing angle: 34° – 7°
  • Compatible with IR light

The lens is a very important component of your camera. It regulates the incidence of light on the camera's CCD and thus ensures an optimal exposure of your pictures. All lenses have a standard mounting thread. You can easily mount CS-Mount lenses on any camera. The aspheric lenses ensure especially high-quality pictures and prevent poor focusing at the edges. The incidence of light through the iris is controlled by the camera's auto-iris function. The lens is connected to the camera with a DC plug. The lens features of this lens that differ are a different viewing angle and a different focal length. (The greater the focal length, the narrower the viewing angle and the nearer you can zoom in on the image.) The TV8552, TV8553, TV8554, TV8555 und TV8556 lenses are IR-light compatible.

Technical data:

Art. no.: TV8552
Dimensions: (HxD) 63.5x52.5 mm
Aspherically ground: Ja
Aperture: F 1.3
Horizontal angle: 34 − 7 °
Width: 52.5 mm
Focal length: 8,5 − 40,0 mm
Format: 1/3
Thread: CS
Height: 63.5 mm
Compatible with IR light: Ja
Iris: Auto-Iris
Net weight: 0.126 kg

Scope of delivery:

  • 1x User guide
Objektive für Analoge Kameras

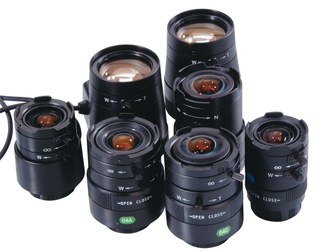

Lenses for analog cameras

All lenses for analog cameras from ABUS have a standardized connection thread. As CS-mount lenses, they can be easily installed. The aspherical lenses ensure especially high-quality images and prevent poor focusing at the edges. ...
