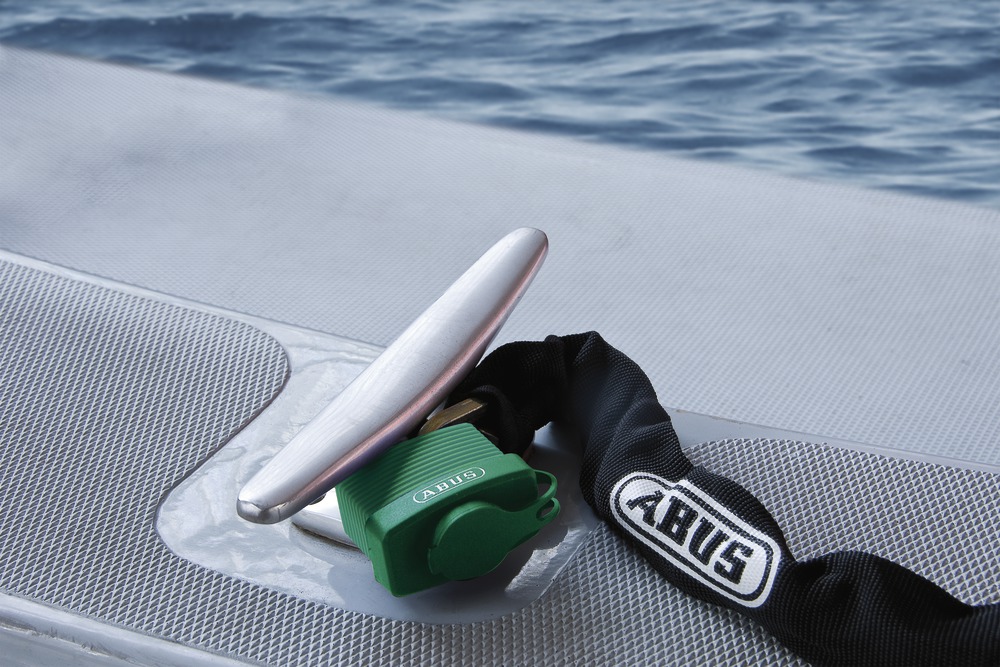

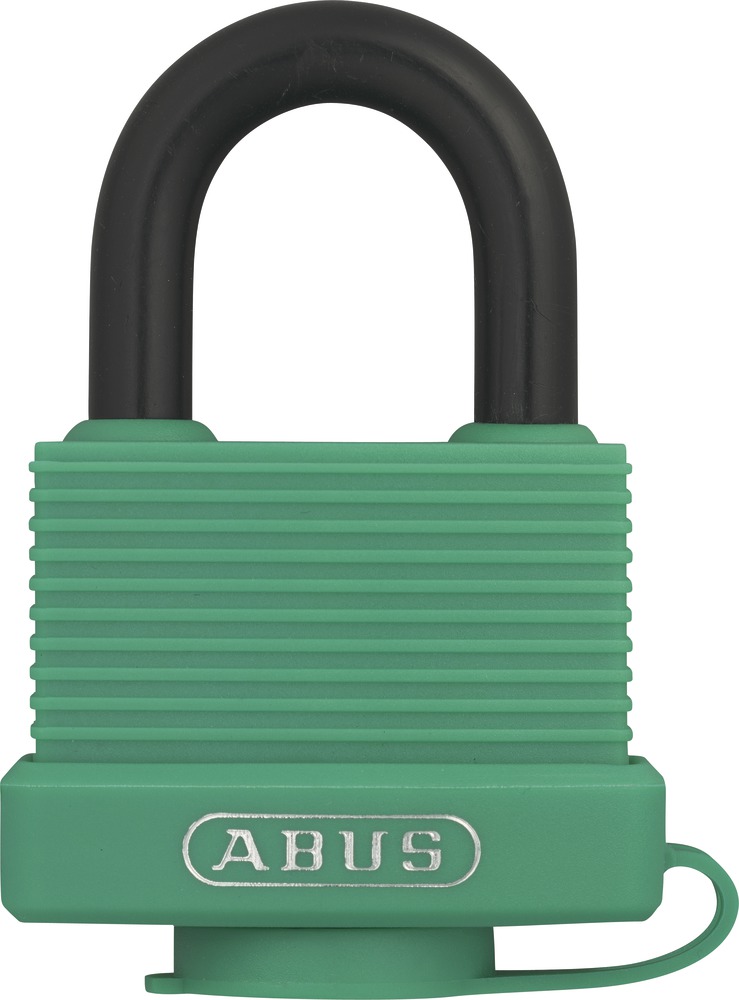

Padlock ECOLUTION™ 70IB fronmtal view Padlock ECOLUTION™ 70IB example of application Technical drawing
Level 5 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security Special lubricant suitable for use in food production according to FDA 21 CFR178.3570 and USDA NSF H1 Zero waste production policy at ABUS factories Packaging made from eco-friendly recycled material Product and packaging made of recyclable materials without PVC Special materials and coatings for ultimate corrosion-resistance and long life
|||

Padlock ECOLUTION™ 70IB

ECOLUTION™

Technology:

  • Body made from solid brass
  • Sealed lock body with special cover plus drainage channels to protect the locking mechanism against water and dirt
  • Shock absorbing vinyl casing prevents sensitive surfaces from damage
  • Stainless steel shackle with plastic sleeve
  • Inner components made from non-corrosive materials
  • Double bolted
  • Precision pin cylinder
  • Paracentric keyway for increased protection against manipulation
  • Automatic locking: Locking without key by pushing down the shackle

Operation and use:

  • To secure goods of medium value or at an average risk of theft
  • Outdoor Green: Outdoor-application, inconspicious look for woods, garden and forest work

Variants:

  • Size: 45 mm
  • Colour: green

Technical data:

Art. no.: 54281
Width a [mm]: 49
Horizontal clearance b [mm]: 20
Vertical clearance c [mm]: 24
Shackle diameter d [mm]: 8
Depth e [mm]: 28
Height f [mm]: 68
Version: ECOLUTION
Level: 5
Weight [g]: 193

Downloads:

Ecolution

ECOLUTION™

Innovative, corrosion-resistant coatings, high-quality materials for a long lifespan, lubricants suitable for use in the food industry, PVC-free vinyl coverings, packaging made from recycled and recyclable material – these "ingredients" form the basis for the new ABUS ECOLUTION™" product range. With an approach that is consistently committed to ecological protection, we are making a clear statement in support of the environment, while ...
