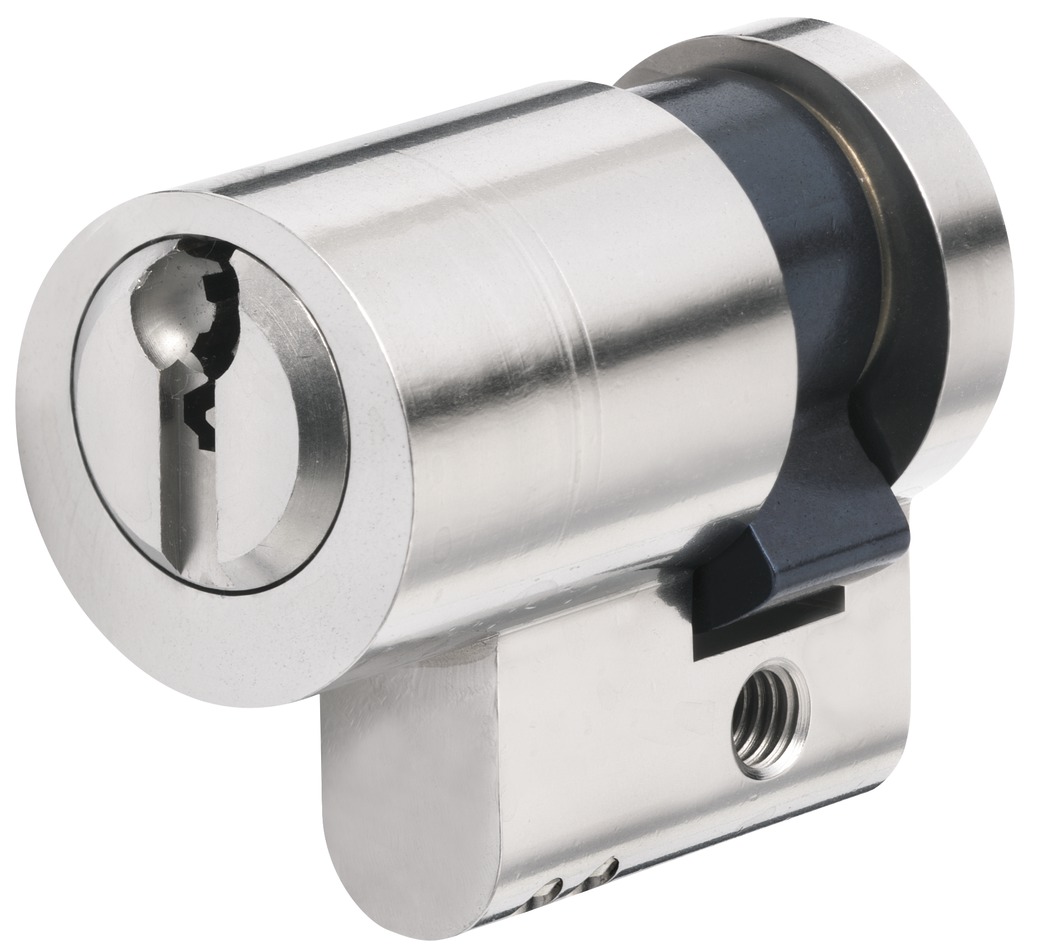

Circular half cylinder Ø 22 mm, recessed Circular half cylinder Ø 22 mm, recessed
DIN 18252 - German norm for locking cylinders DIN EN 1303 - European norm for locking cylinders
|||||

Circular half cylinder Ø 22 mm, recessed 458

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection

Operation and use:

  • for interior and exterior use
  • especially in Switzerland, Europe
  • together with respective rim locks

Variants:

  • available in the systems K14, KV14, KY14 Deltus, KW14, Wavy Line pro and Integral
  • housing only available in 6 pin length and with lateral locking elements

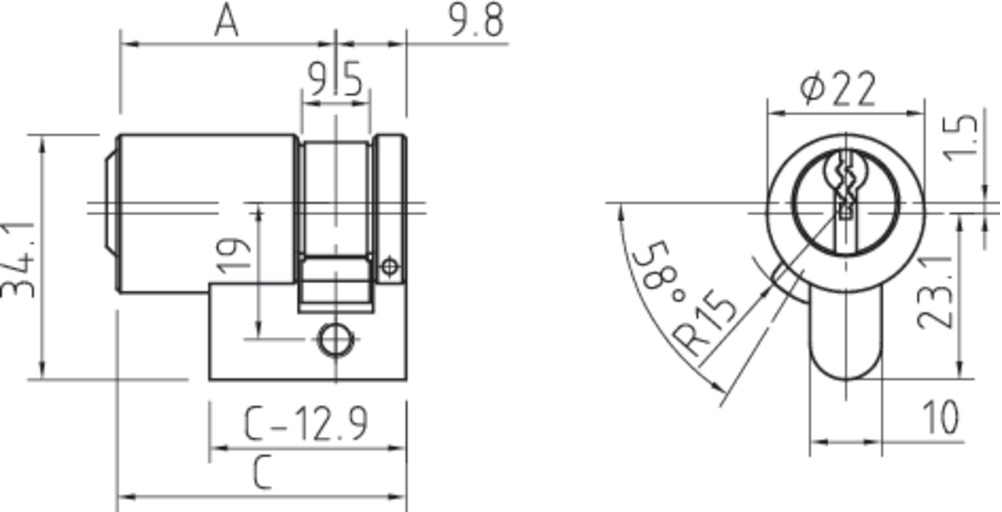

  • 6 pin tumblers: standard length (C) 40,3 mm
  • supplied with cam in 0° position and the user can put it in any position in steps of 45° (8-position adjustability)
  • also available with limited free-wheel cam: cam with free-wheel function of 90°, 180°, 240 or 270°, clockwise definition of the locking movement angle, please indicate the angle when ordering
  • salt-water resistance (finish CR, special pinning)
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")

Downloads:

Swiss profile cylinder

Swiss profile cylinder

These profile cylinders of our special range are especially used in Switzerland. Together with the respective rim locks it is possible to realize key systems with double, knob and half cylinders for interior and exterior use. We manufacture according to DIN EN 1303, DIN 18252 and are ISO 9001:2008 certified. Subsequent you will find more detailed information on the Swiss profile double, -half and -knob cylinders with a ...
