Oval half cylinder with 8-position adjustable cam Oval cylinder with 8-position adjustable cam
DIN 18252 - German norm for locking cylinders DIN EN 1303 - European norm for locking cylinders
|||||

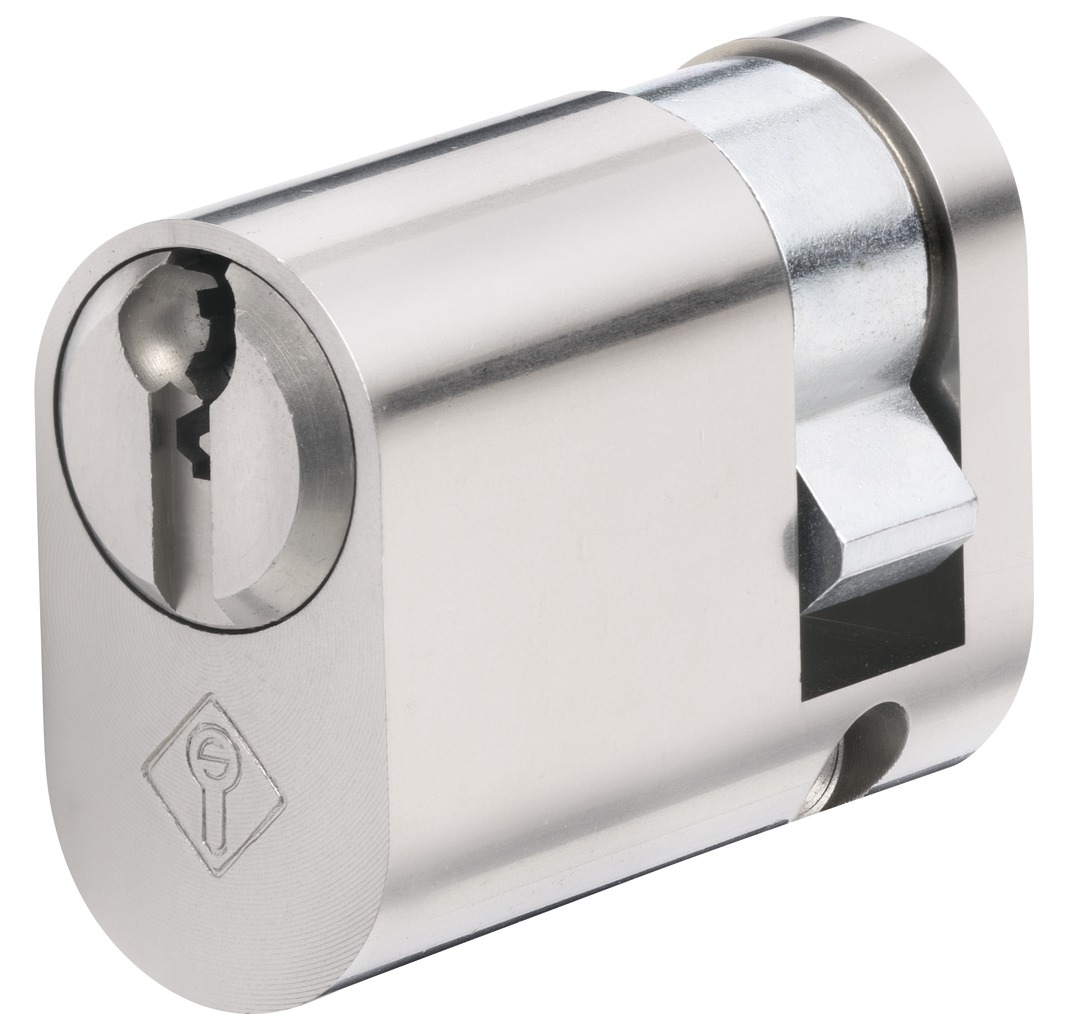

Oval half cylinder with 8-position adjustable cam 357/457

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection

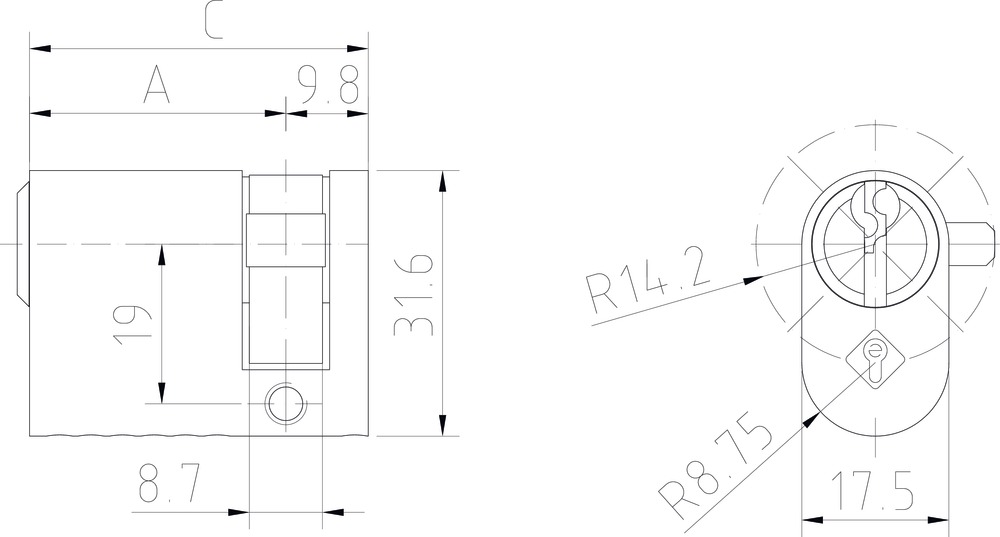

  • special cam with locking radius 14,2 mm

Operation and use:

  • for interior and exterior use
  • especially in the Netherlands and Belgium, Europe
  • together with respective rim locks

Variants:

  • available in the systems Standard, X14, Z14, XZ14, Y14 Deltus, XY14 Deltus, W14, XW14, V14, XV14, Y14, XY14 Wavy Line and Integral (further systems on request)
  • 5 pin tumblers: standard length (C) 40,3 mm
  • 6 pin tumblers: standard length (C) 40,3 mm
  • available up to a length of 50,3 mm (further lengths on request)
  • supplied with cam in 0° position and the user can put it in any position in steps of 45° (8-position adjustability)
  • also available with limited free-wheel cam: cam with free-wheel function of 90°, 180°, 240° or 270°, clockwise definition of the locking movement angle, please indicate angle when ordering
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")

Downloads:

Oval cylinders

Oval cylinder

Oval cylinders of our special range are especially used in the Netherlands, Belgium and Great Britain. We manufacture according to DIN EN 1303, DIN 18252 and are ISO 9001:2008 certified. Here you find more detailed information on oval cylinders for special mortise locks, as well as on oval cylinders as double-, knob- and half cylinder. ...
