Profile knob cylinder, Anti Amok Profile knob cylinder, Anti Amok
Increased or strong drill protection available as option Corresponds to fire resistance class 1 for fire protection doors Development and production in Germany Salt-water resistance according to DIN50021SS available as option Key retrofittabel with rfid cap
DIN EN 1303 - European norm for locking cylinders DIN 18252 - German norm for locking cylinders
|||||

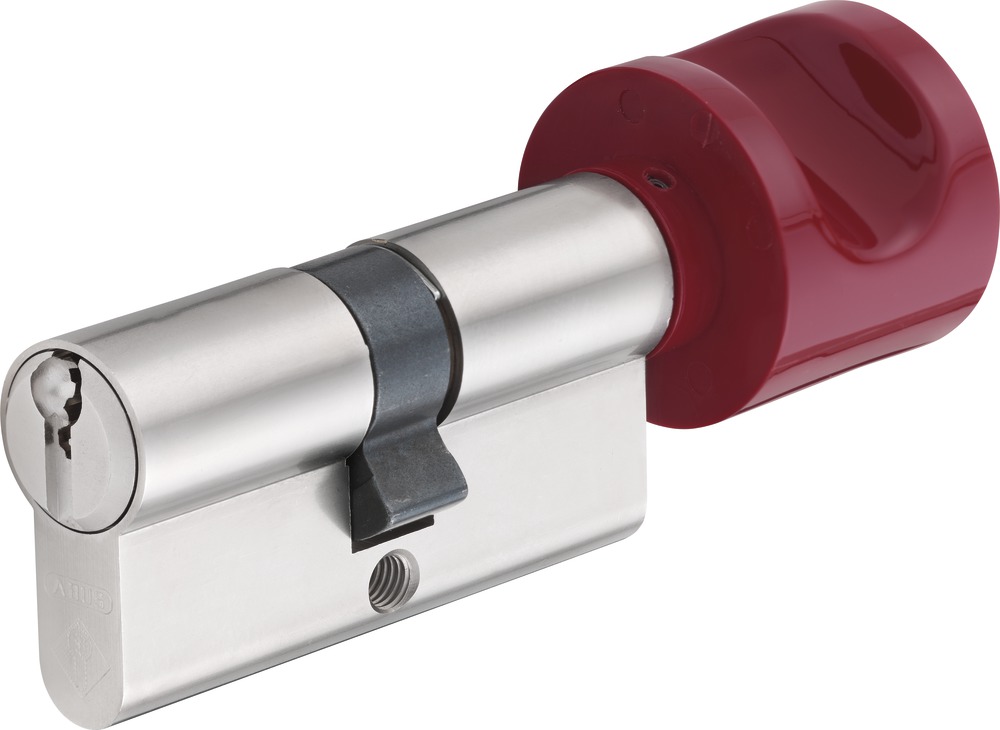

Profile knob cylinder Anti Amok 330 ZKU3/430 ZKU3

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection

Operation and use:

  • for interior and exterior
  • use especially in public institutions, schools, nursery schools
  • fast protection against unauthorized access (in case of danger, if the door needs to be locked quickly)
  • by putting the key into the exterior side of the cylinder it is possible to decouple the knob function
  • together with respective DIN mortise locks

Variants:

  • available in the systems Standard, X14, K14, Z14, XZ14, V14, XV14, KV14, Y14, XY14, Y14 Deltus, XY14 Deltus, KY14 Deltus, W14, XW14, KW14, Wavy Line, Wavy Line pro and Integral

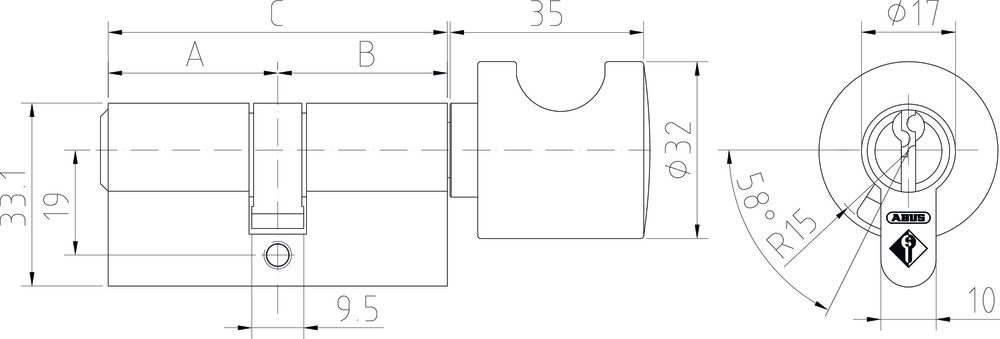

  • 5 pin tumblers: standard length (C) 53 mm
  • 6 pin tumblers: standard length (C) 61 mm
  • standard knob: shape Z, anodized, finish F2 with red knob, shape L, polyamide without surcharge
  • salt water resistance (finish CR, special pinning)
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")

Downloads:

Profile knob cylinder

Profile knob cylinder

Profile cylinders with knob are delivered in series with knob shape Z, nickel pearl finish. Further knob shapes and finishes are available on demand. Due to our 14 mm core diameter it is possible to realize complex locking systems for inner and outdoor areas. We manufacture according to DIN EN 1303, DIN 18252 and are ISO 9001:2008 certified. Here you can find more information on our knob cylinders, optionally with anti ...
