Half cylinder for lift and switch cylinder Half cylinder for lift and switch cylinder
DIN 18252 - German norm for locking cylinders DIN EN 1303 - European norm for locking cylinders
|||||

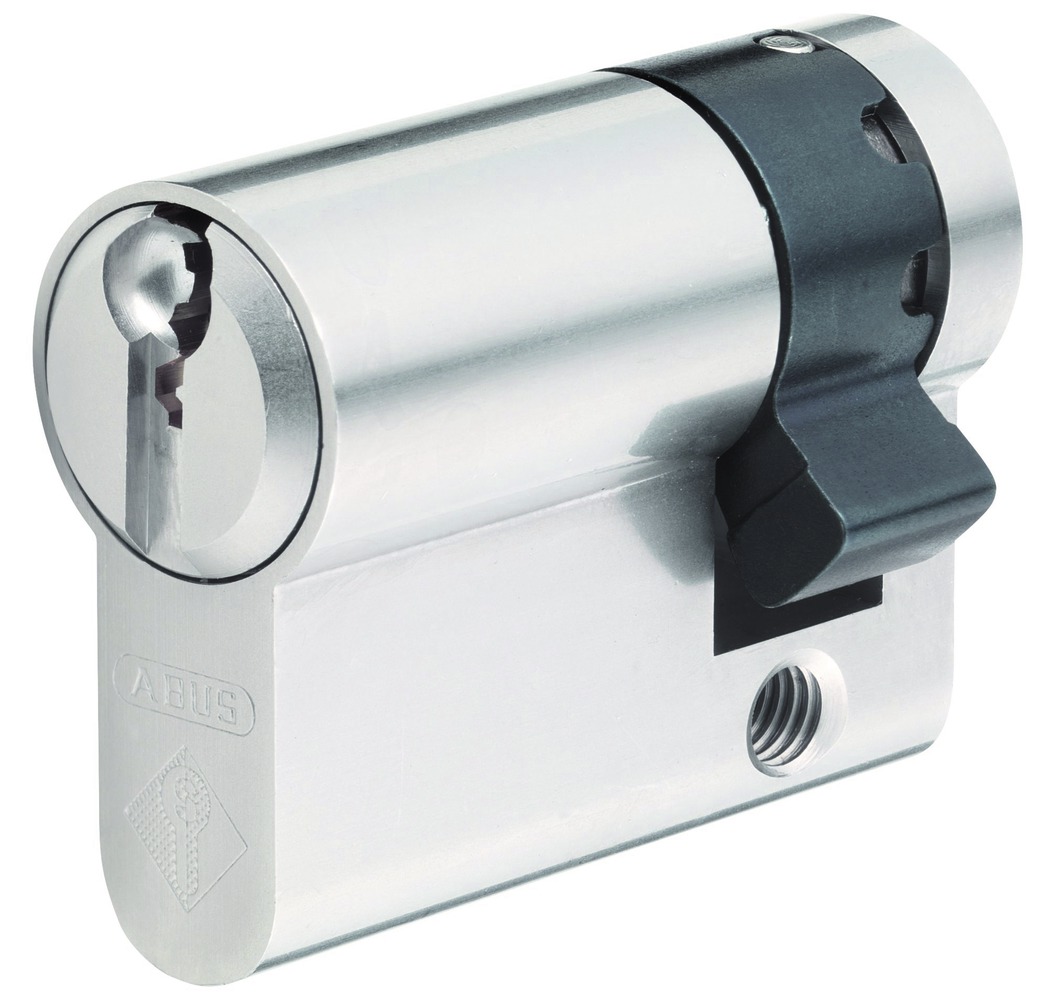

Half cylinder for lift and switch cylinder 352-AS/452-AS

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection
  • two drill holes on the back for fixing the cylinder

Operation and use:

  • for interior and exterior use
  • as lift and switch cylinder

Variants:

  • available in the systems Standard, X14, K14, Z14, XZ14, V14, XV14, KV14, Y14, XY14, Y14 Deltus, XY14 Deltus, KY14 Deltus, W14, XW14, KW14, Wavy Line, Wavy Line pro and Integral

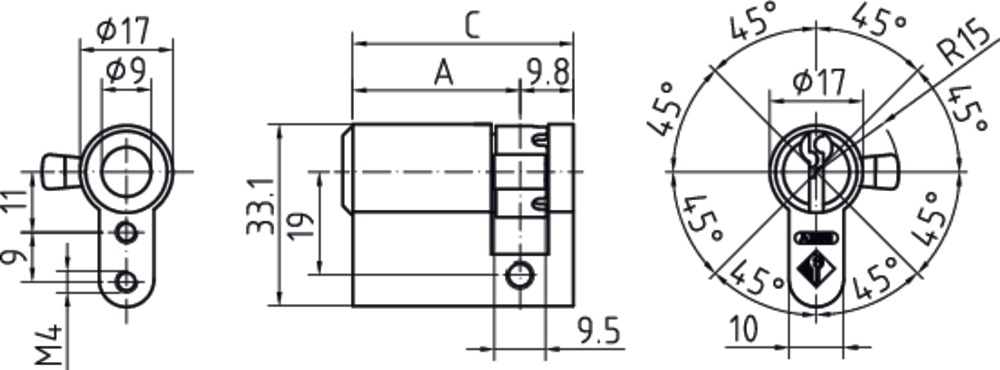

  • 5 pin tumblers: standard length (C) = 36,3 mm
  • 6 pin tumblers: standard length (C) = 40,3 mm
  • supplied with cam on 7 o'clock° position and the user can put it in any position in 45° steps (8-position adjustability)
  • salt-water resistance (finish CR, special pinning)
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")

Downloads:

Profile half cylinder

Profile half cylinder

Profile half cylinders for respective mortise locks according to DIN can be applied in inner and outdoor areas. Our cylinders have a core diameter of 14 mm and are manufactured according to DIN EN 1303, DIN 18252 and ISO 9001:2008. Here you will find more detailed information on our half cylinders as dummy cylinders, as half cylinders with locking inserts, half cylinders with knob or for elevator or switch cylinders. ...
