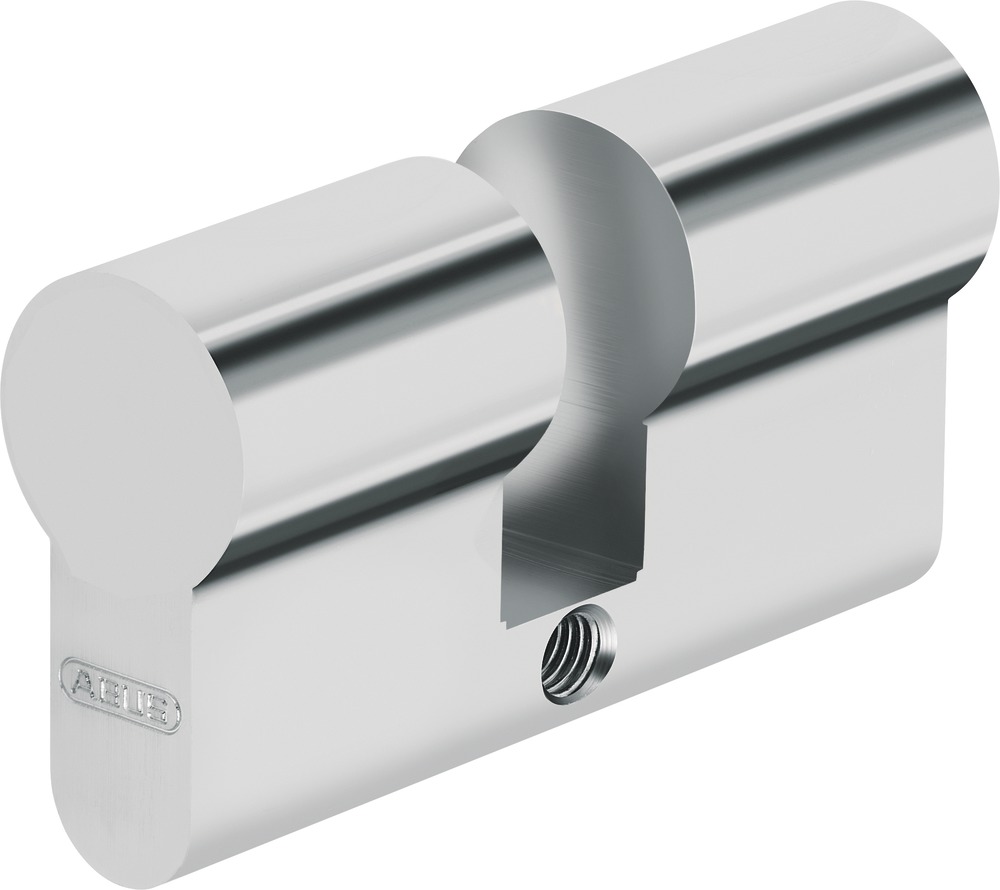

Compact dummy cylinder Compact dummy cylinder
|||||

Compact dummy cylinder 493

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • several drill holes allow the use of different fixing screws with same total length of the cylinder

Operation and use:

  • for interior and exterior use
  • can be used for fire protection doors
  • together with respective DIN rim-locks
  • where no locking function is required
  • for uniform door design within a key system

Variants:

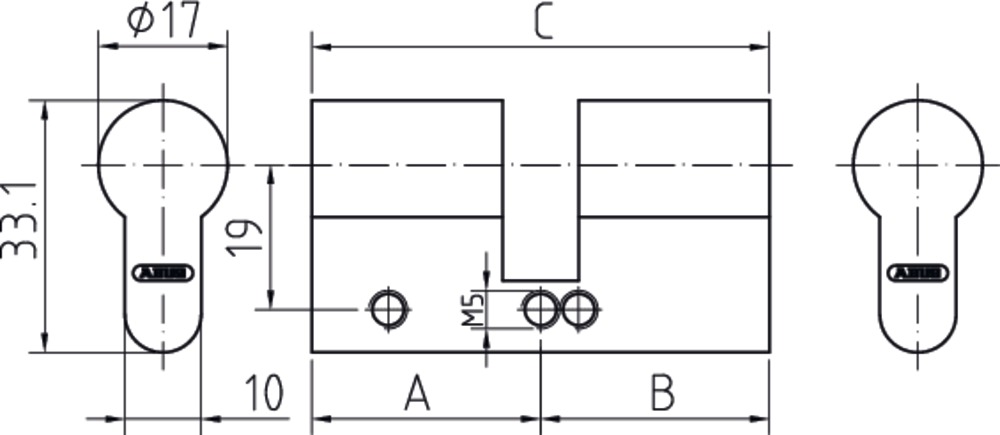

  • half cylinder: from total length (C) 35 mm
  • double cylinder: from total length (C) 50 mm

Downloads:

Dummy cylinders

Dummy cylinders

We offer compact dummy cylinders as well as universal dummy cylinders which can be used in inner and outdoor areas together with DIN rim-locks. These cylinders are used in doors without locking function in order to realize a homogeneous design within the key system. We manufacture according to DIN EN 1303, DIN 18252 and are ISO 9001:2008 certified. On the subsequent pages you can find more information on our compact ...
