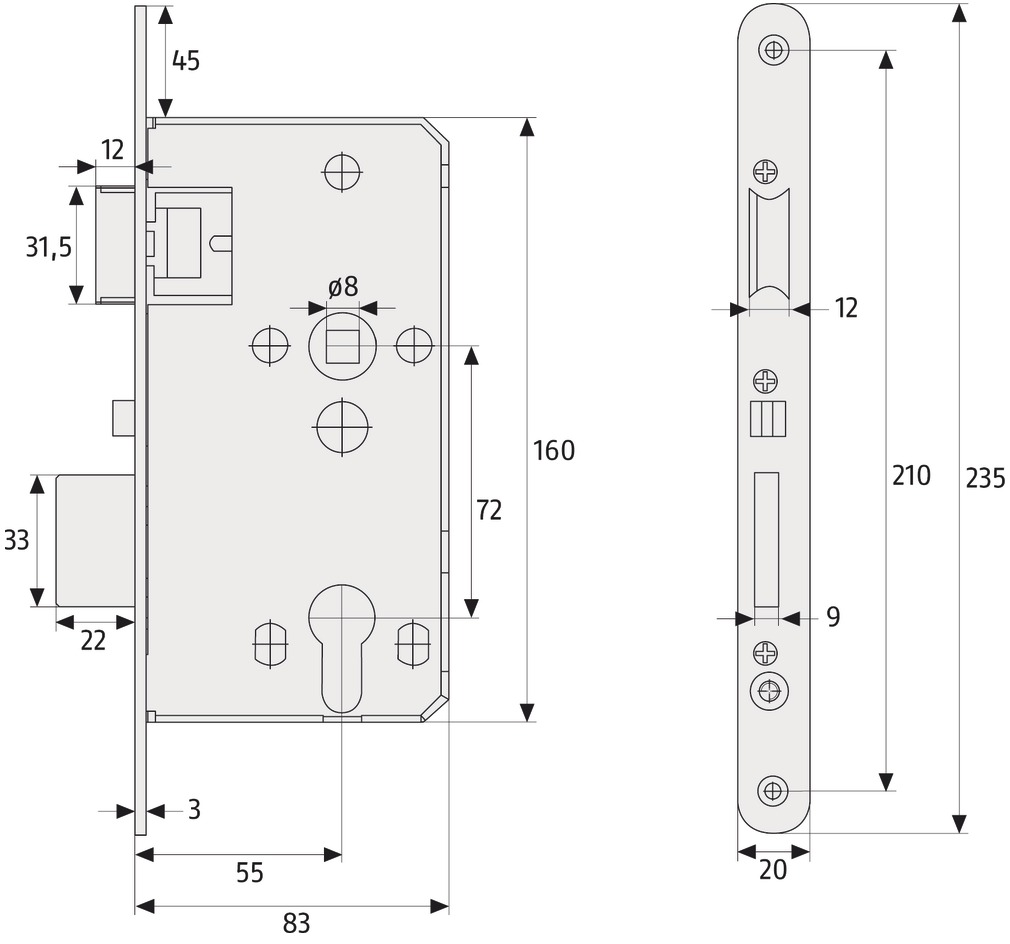

Mortice lock TKZ40 Technical drawing
Level 9 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Mortice lock for door cylinders Mortice locks for doors with hinges on the right side Mortice locks for doors with hinges on the left side Distance between center of door cylinder and center of thumb turn or handle
|||

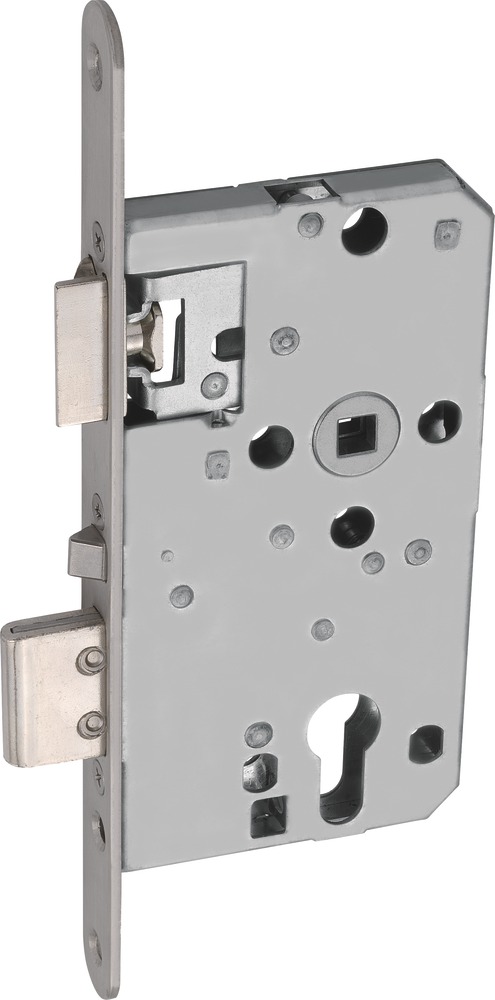

Mortice Lock TKZ40

Self locking mortice lock

Technology:

  • For standard door cylinders (no free-turning cam needed)
  • Latch brass nickel-plated, square bolt malleable iron
  • High capacity of resistance by use of high quality materials
  • With anti-panic feature (can be opened with the handle from the inside)
  • According to DIN 18251 class 3
  • Steel bolt with 22 mm protrusion

Operation and use:

  • Apartment doors in combination with door fittings
  • Self-locking when closing the door
  • Can be used right and left (forend and latch reversible)

Variants:

  • Finish: stainless steel

Technical data:

Art. no.: 45551
Level: 9
Colour: stainless steel

Downloads:

Mortise locks

Mortise locks

The mortice lock is activated by the door cylinder – it may be invisible but it has a crucial function. Just as it's impossible to start an engine without a starter motor, a door cannot be locked without a mortise lock.ABUS mortise locks that meet DIN 18251ABUS offers a wide range of mortise locks that meet DIN 18251 with solutions for a variety of needs, e.g. fire doors or doors with narrow profiles. The premium product is the TKZ 40 – a ...
