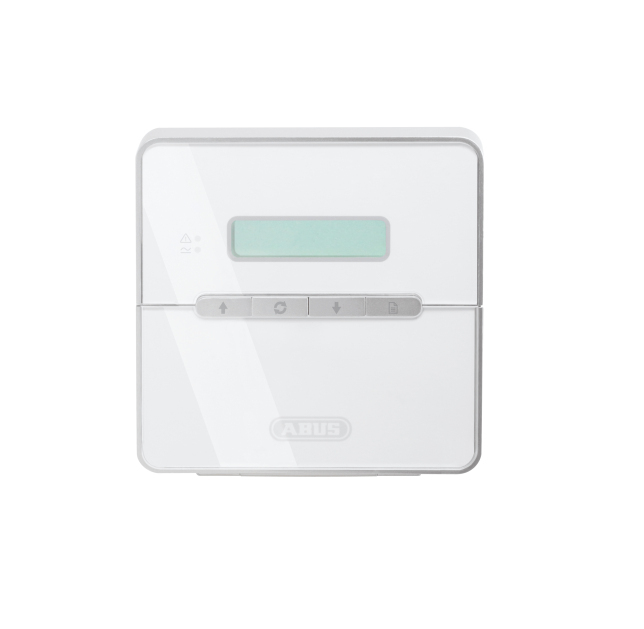

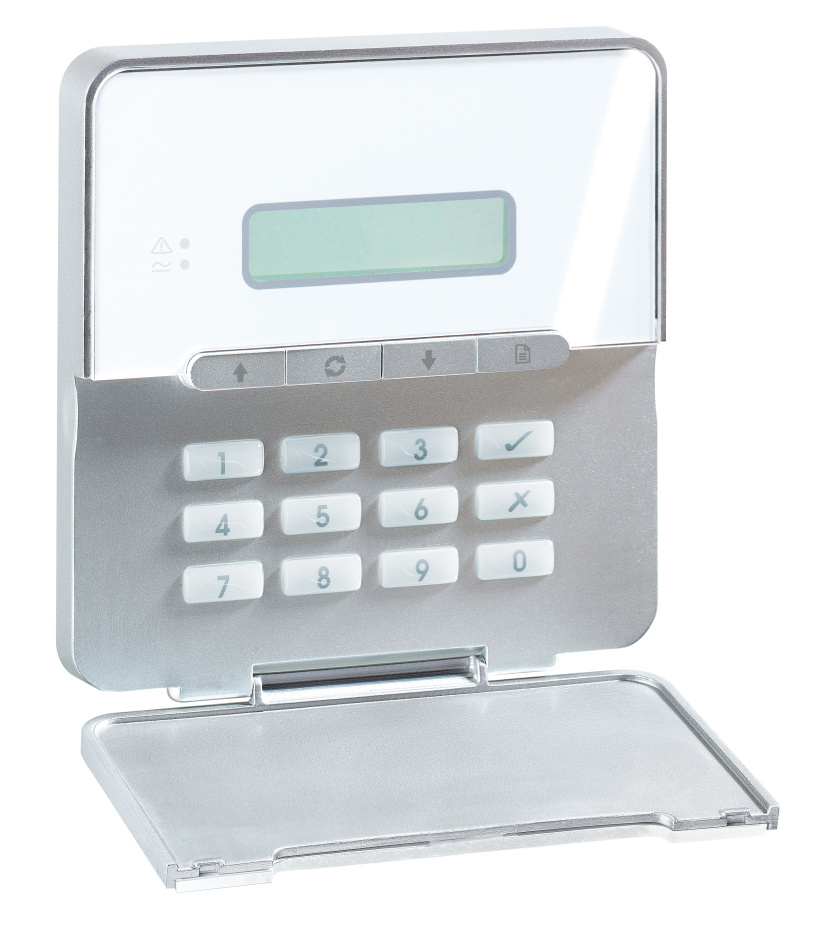

Terxon LX LCD Keypad (Art. no. AZ4210)

We expressly recommend having this product installed by a certified specialist.

Special product features:

  • For operating and programming the alarm panel
  • Suitable for indoor and protected outdoor use
  • Operate your alarm panel with PIN code or proximity key fob
  • Protection class IP66

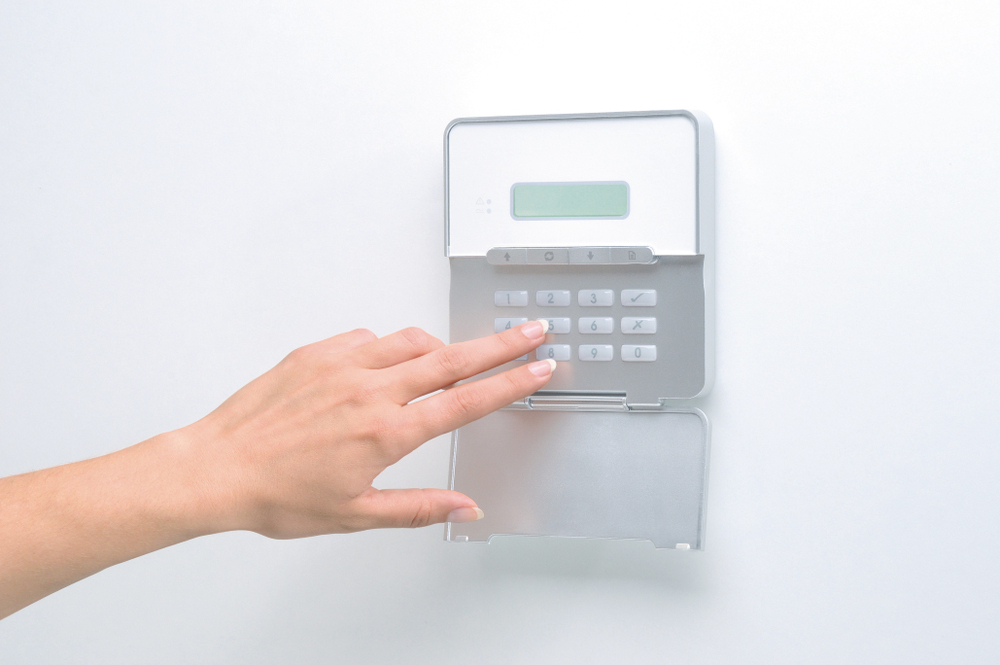

The Terxon LX LCD Keypad is an extension module for the Terxon LX. Installed near the entrance door, it allows you to quickly operate your alarm control panel. The LCD keypad is connected to the Terxon LX via a 5-wire bus cable. Up to 128 control units can be integrated into the alarm system. Arranged in various parts of your building, these extension modules provide additional convenience. The system can be conveniently activated or deactivated via any keypad using a PIN code and proximity chip key. The status of the alarm control panel is also displayed on the plain text display of the control unit. You can conveniently view and, of course, change system settings, programming and the 2000x event memory of the Terxon LX. The LCD keypad is designed in an elegant white color. Thus, it is not only an enhancement for each entrance area, but it is also optically in line with the wireless components of the Secvest 2WAY. Whenever you extend your alarm system, for example, with a wireless universal module or an 8-zone wireless extension, all wireless extension components of the Secvest 2WAY will match your existing system perfectly, not only from a technical standpoint, but also visually.

Technical data:

Art. no.: AZ4210
Dimensions: (WxHxD) 134x134x23 mm
Connections: 5-core bus, screw terminal for connection of two zones, loudspeaker
Display: Alphanumeric LCD display, 2 lines x 16 segments
Outputs: 1 transistor switch output
Width: 134 mm
Housing material: ABS
Height: 134 mm
Length: 23 mm
Power consumption: 0,36
Max. operating temperature: 55 °C
Max. humidity: 94 %
Min. operating temperature: -10 °C
Installation location: Indoors and protected outdoor areas
Net weight: 0.2 kg
Tamper monitoring: Yes
Switching outputs: 1
IP protection class: 54
Security level: 2
DC voltage supply: 12 V
Power consumption: 30 mA
Environmental class: II
Certifications: INCERT, VSÖ, F&P, NCP
Zone closure: 2 DEOL (FSL) if connected to bus (alarm panel)

Scope of delivery:

  • 1x LCD control panel
