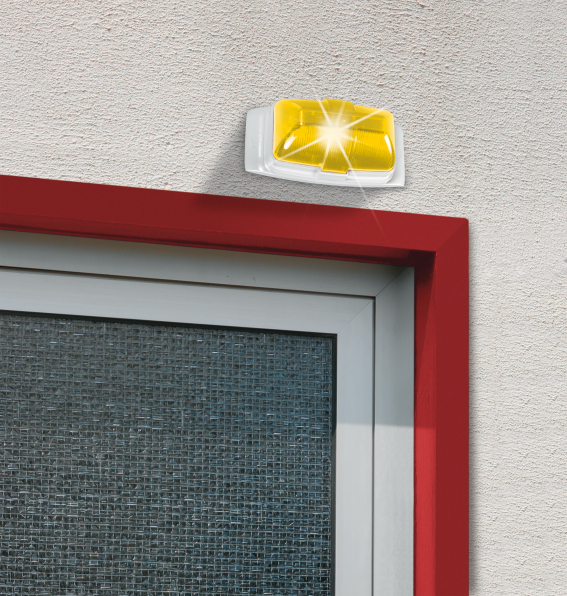

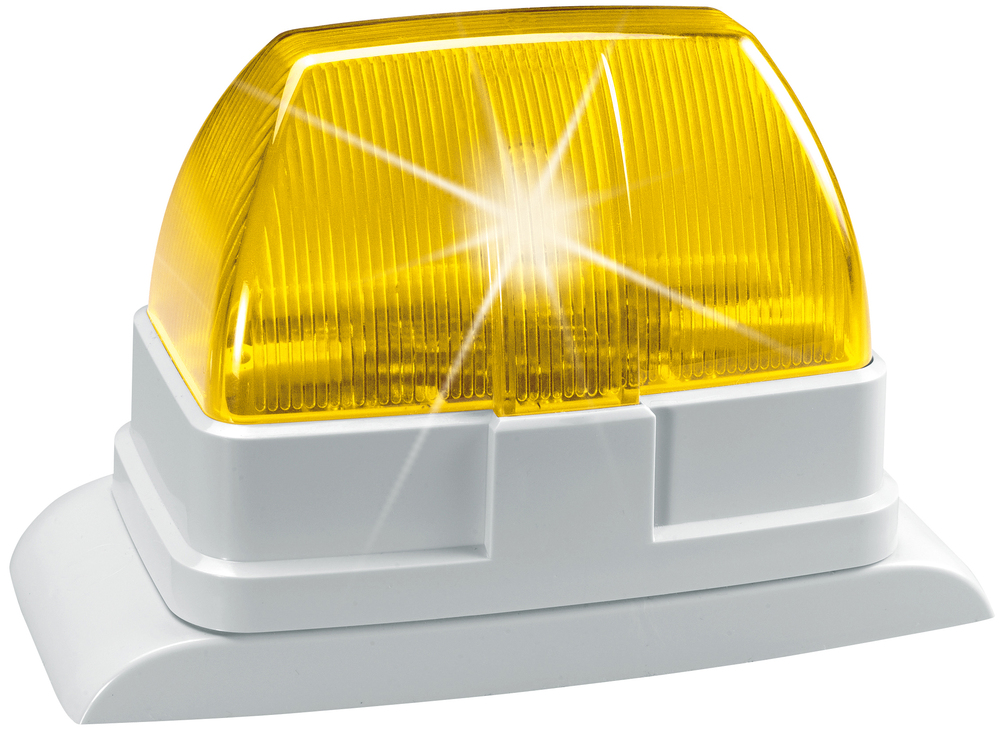

Xenon flashing light, yellow front view right Xenon flashing light, yellow Example of application
|||||

Xenon flashing light, yellow (Art. no. SG1675)

We expressly recommend having this product installed by a certified specialist.

Special product features:

  • Including adapter for on-wall mounting
  • High flash power
  • Can also be mounted on SG1660
  • Splashproof
  • Protection class: IP54

You can install the Xenon flashing light inside and outside your building. The optical signalling device is a crucial link in a fully functioning alarm chain. At the start of the chain is a detector. In the event of an alarm, the colored Xenon flashing light can be seen over a large distance and flashes at 70 times a minute. The robust plastic housing (IP 54) of the signalling device offers protection against the environmental influences. The flashing light is supplied externally with 12V operating voltage. You can choose between three difference light colors, according to your requirements: red (SG1670), yellow (SG1675) and blue (SG1680).

Technical data:

Art. no.: SG1675
Dimensions: (WxHxD) 175x110x75 mm
Flashing frequency: 1.17 Hz
Width: 175 mm
Housing material: ABS
Height: 110 mm
Length: 75 mm
Power consumption: 4,2
Luminous color: Yellow
Illuminant: Xenon
Max. operating temperature: 55 °C
Min. operating temperature: -25 °C
Installation location: Indoors and protected outdoor areas
Net weight: 0.15 kg
IP protection class: 54
DC voltage supply: 12 V
Power consumption: 350 mA

Scope of delivery:

  • 1x Xenon flashing light
  • 1x Adapter for flush mounting
  • 1x Installation material

General Downloads:

Signalgeber

Sounder

At the end of the alarm chain, alarm signaling devices ensure that the intruder gives up and that help comes quickly. Visibly mounted alarm signaling devices thwart many burglaries just through deterrence. Whether glaring Xenon strobe light or a loud siren – these alarm signaling devices cause intruders to flee. ...
