Terminal distributor flush mount, 32-pins, white front view Terminal distributor flush mount, 32-pins, white front view
VdS
||||

Terminal Distributor Flush Mount, 32-pins (white) (Art. no. VT4100W)

We expressly recommend having this product installed by a certified specialist.

Special product features:

  • Surface mounting
  • Corrosion-proof, tin-coated solder contacts
  • Impact-resistant plastic
  • Monitored for tampering
  • VdS class C

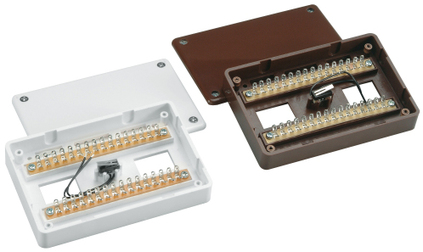

With a terminal distributor flush mount, you provide wiring that is clear and easy to understand. Particularly if you install several control panels and sensors, you should fit distributors at the intersections of your building. The surface-mounted soldered distributor is tamper-protected by a cover contact. It is produced in white and brown, with 16 (VT4000) and 32 (VT4100) double solder contacts. The distributor is made of shock-resistant plastic. The solder contacts are tin-plated and thus rust-resistant. The surface-mounted soldered distributor is VdS certified.

Technical data:

Art. no.: VT4100W
Dimensions: (WxHxD) 175x75x19 mm
Connections: 32 double solder contacts
Width: 115 mm
Housing material: ABS
Height: 75 mm
Length: 19 mm
Installation location: Surface mounting
Tamper monitoring: Yes
Environmental class: III
Certifications: VdS C
