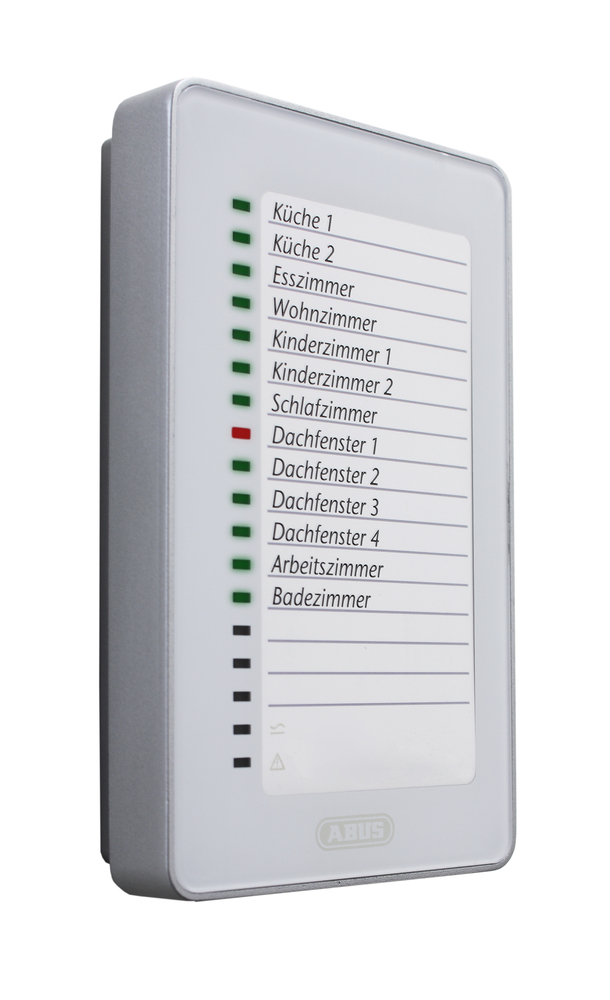

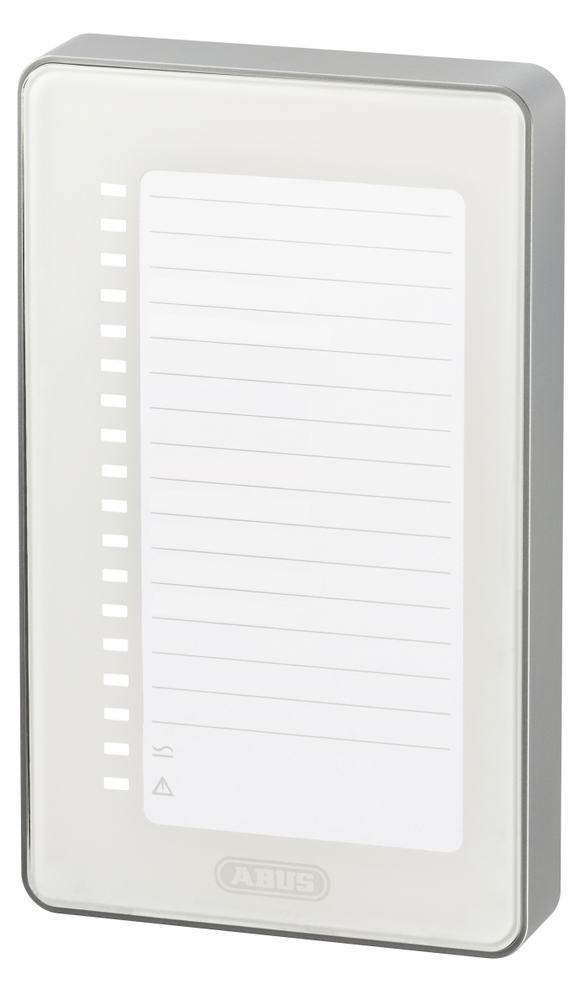

Wireless Display Module (Art. no. FU8403)

We expressly recommend having this product installed by a certified specialist.

Special product features:

  • 16 individually programmable display channels
  • Compatible with mechatronic and Secvest wireless opening detectors
  • 2 LED status indicators
  • Standalone solution for displaying the status of connected detectors

The wireless display module provides a quick overview of the status of the Secvest detectors in the house. You can see at aglance whether a detector or a window is open or closed. The module has a convenient status display for the FTS 96 E wireless window protection system and the Secvest wireless magnetic contact detectors - even in stand-alone mode without the alarm panel. However, if the window protection systems are operated in combination with a Secvest 2WAY, the display module is an important supplement: window protection system and wireless magnetic contact detectors can be taught-in to the display module and the alarm panel at the same time.

Technical data:

Art. no.: FU8403
Dimensions: (WxHxD) 135x220x45 mm
Display: 18 LED status displays
Width: 135 mm
Radio frequency: 868
Housing material: ABS
Height: 220 mm
Length: 45 mm
Power consumption: 5,4
Max. receiving range (outdoors): 100 m
Max. receiving range (building): 30 m
Min. operating temperature: 0 °C
Modulation: FM FM / AM
Net weight: 0.52 kg
DC voltage supply: 12 V
Power consumption: 450 mA
Environmental class: I

Scope of delivery:

  • 1x Power supply
  • 7x DIN A5 insert
  • 1x Installation material
  • 1x User guide
