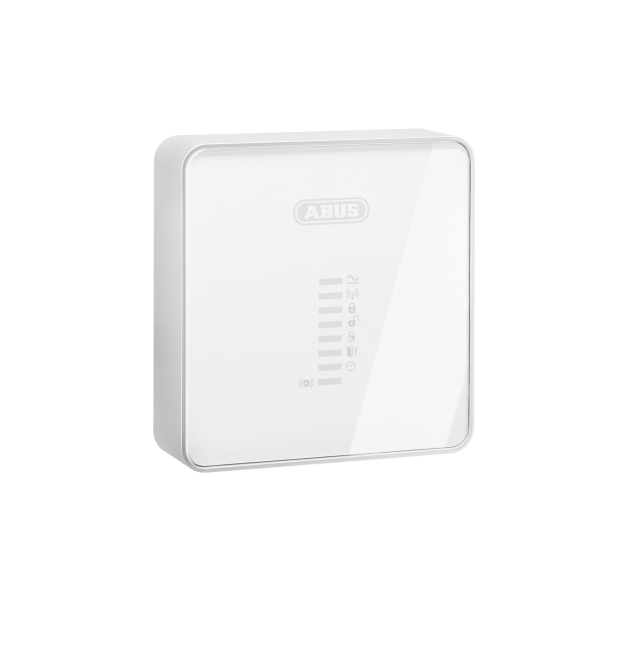

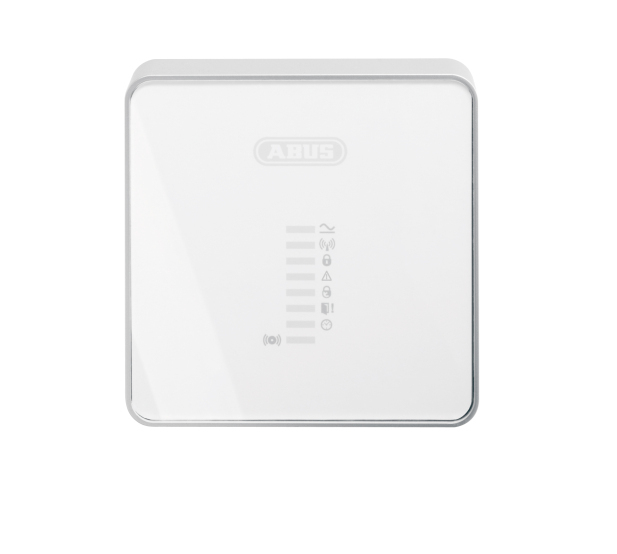

Secvest 2WAY Wireless Info Module right view Secvest 2WAY Wireless Info Module front view
||||

Secvest 2WAY Wireless Info Module (Art. no. FU8200)

We expressly recommend having this product installed by a certified specialist.

Special product features:

  • Provides information on Secvest 2WAY status
  • 8 LED indicators
  • Different signal and alarm tones
  • Integrated piezo signal generator
  • Supplied externally with 12 V

The wireless info module is an optional accessory for the Secvest 2WAY. Via an LED display and various acoustic signals, it notifies the alarm system of all processes and statuses. You can read the following system statuses from the 8 LEDs of the info module:

  • Voltage display
  • Reception of a valid signal
  • Status of the sub-section to which the control unit is assigned (armed/disarmed) Information available after reset
  • Status of the sub-section to which the control unit is assigned (internally armed/disarmed)
  • Open zones available/the Secvest is in installer mode
  • If the input or output delay time is running
  • An alarm is triggered
You can learn the following statuses from the acoustic signals of the internal Piezo signal generator:
  • Fault: The system cannot be armed
  • During the output delay, a zone has been opened/closed
  • Input delay is running
  • Door chime
  • Panel successfully armed
  • Teach-in signal received
  • Installer mode exited
In addition, the internal Piezo sounder provides an alarm with up to 110 dB if triggered. The distance from the wireless info module to the alarm panel can be up to 100 meters.

Technical data:

Art. no.: FU8200
Dimensions: (WxHxD) 124x124x40.7 mm
Connections: 12V
Display: 8 LEDs of different colors
Width: 124 mm
Radio frequency: 868,6625
Housing material: ABS
Height: 124 mm
Integrated siren: Internal piezo signaller 110dB(A) @ 1m
Length: 40.7 mm
Power consumption: 0,477
Max. operating temperature: +55 °C
Max. humidity: 96 %
Max. receiving range (outdoors): 100 m
Max. receiving range (building): 30 m
Min. operating temperature: -10 °C
Modulation: FM FM / AM
Installation location: Indoors
Net weight: 0.2 kg
Sound pressure: 110 dB
IP protection class: 54
Security level: 2
DC voltage supply: 9-14 V
Power consumption: 53 mA
Environmental class: II

General Downloads:

Required accessories:

Secvest Power Supply, 12 V, 1.5 A
FU3822
